FORM & FUNCTION
DESIGN II- ARC 257

The goal of this project was to design bridge with a movable concept, allowing for a 30 feet by 40 feet object to pass through seamlessly. This innovative design not only enhances functionality but also ensures safety and accessibility for larger vehicles. By incorporating a mechanism that allows the bridge to adjust, were required to carefully consider the design's form and function.

CONCEPTUAL SPANS


Name: Arthur Ravenel Jr. Bridge

Location :Charleston, South Carolina
Type: Cable-Stayed

Name: Quebec Bridge

Location: Quebec, Canada

Type: Cantilever


Name: Sydney Harbour Bridge

Location: Sydney, Australia

Type: Arch

MOVEMENT ANALOGIES

In our innovative approach to bridge opening movement we repurposed everyday household items featuring two or more hinges. By utilizing items like Wine bottle openers and umbrellas, we created a functional model that mimics the mechanics of a real bridge These common objects allowed us to explore the principles of leverage and pivoting, showcasing how simple materials can contribute to complex engineering concepts.

Wine Bottle Opener
Umbrella
Eye Lash Curler

PRELIMINARY 3x3 PROTOTYPE TABLE


SELECTED PROTOTYPE


BUILDING PROGRESS

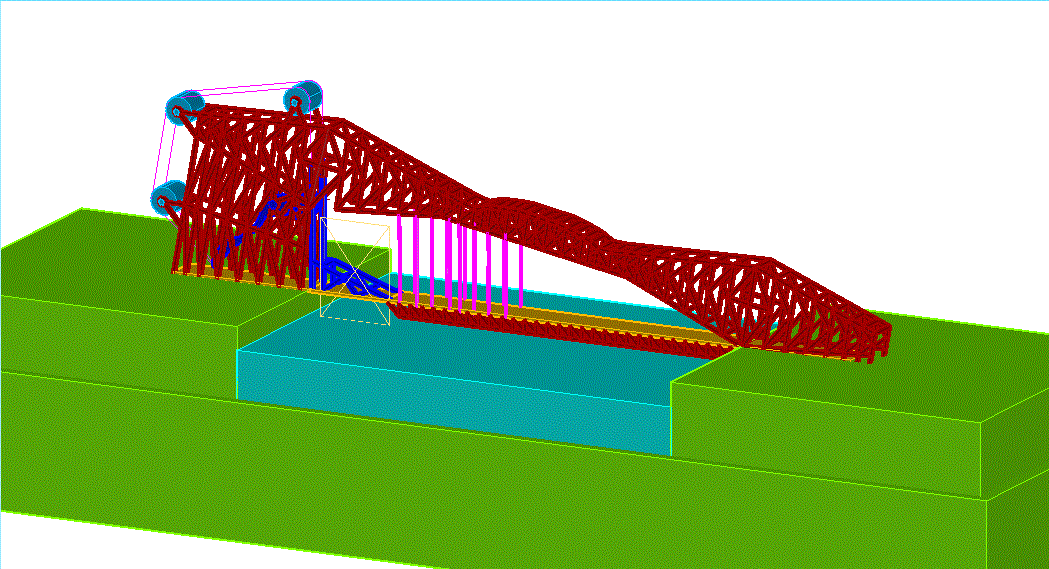

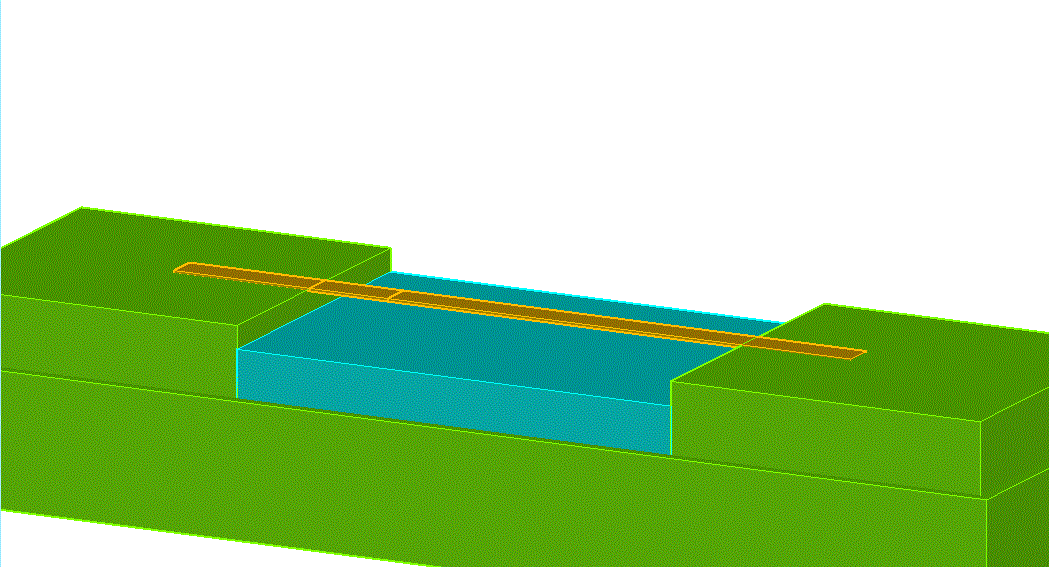

MECHANISM MOVEMENT


 VIEWS

North West View
North East View
South East View
South West View

FINAL DESIGN
